HOZAN Logo

L-837
USB CAMERA

  • PC
  • USB
  • Cマウント
Image sensor 1 / 2.5" CMOS
Output connector USB 2.0
Display resolution
(Max.)
2048 × 1536 (3.0 Mega pixels)
Maximum frame rate 30 fps
Lens mount type C Mount
Rated voltage 5VDC(USB)
Power consumption 0.35 W
Operating environment Windows 8 or later.(32bit and 64bit version)

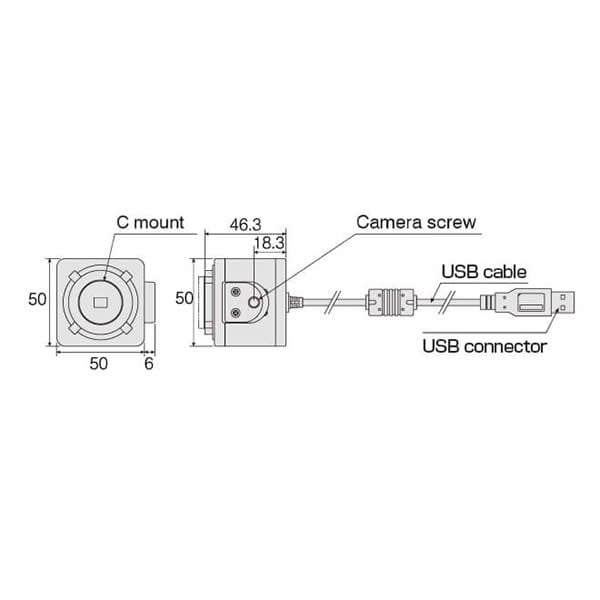

External dimensions 50(W) × 50(H) × 46.3(D)mm
Cord length 1.8m
Weight 180 g

Manual

Software download


Microscopes list

» Microscopes list


L-837 / L-836 / L-851 / L-852 System diagram
