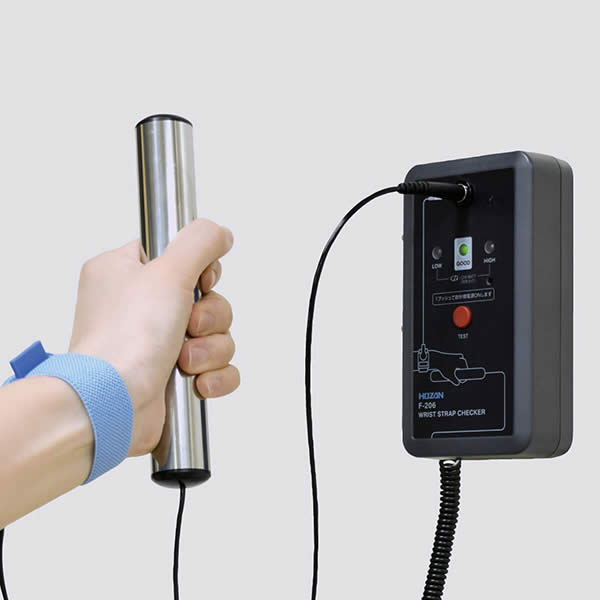

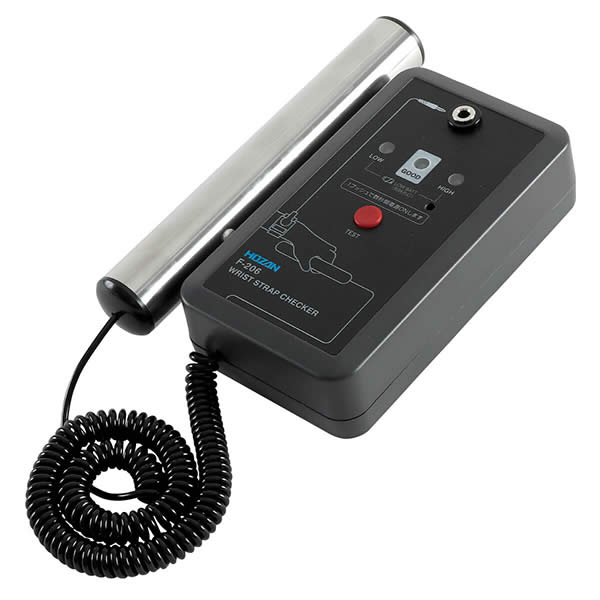

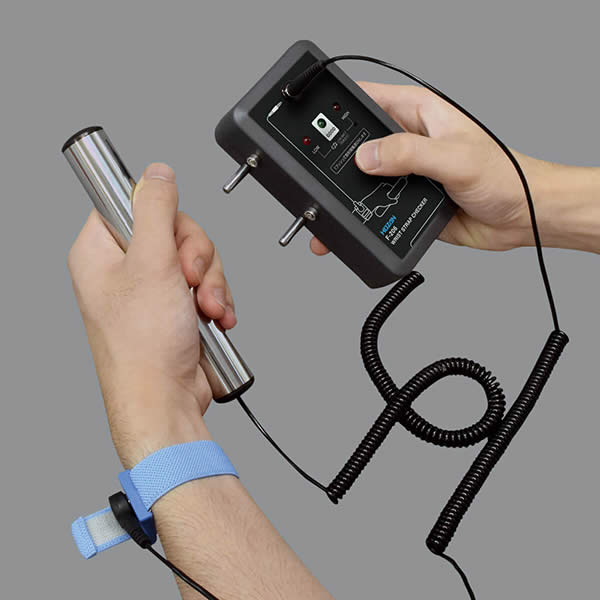

F-206
WRIST STRAP CHECKER
| Indications | LOW | Wrist strap ≦ 750 kΩ |
|---|---|---|
| GOOD | 750 kΩ < Wrist strap < 9 MΩ | |
| HIGH | 9 MΩ ≦ Wrist strap | |
| Accuracy | 750 KΩ･･･－0 %, +6 % 9 MΩ･･･－6 %, +0 % |
|
| Power supply | JIS 6F22(NEDA 1604) | |
| Battery life | 15000 times or more | |
| External dimensions | Main unit：76（W） × 35（H） × 135（D） mm Electrode baton：25 mmφ × 160 mm（150 mm, metal part） |
|
| Weight | 285 g | |
■Accessory banana plug with alligator clip
F-206-TA
WRIST STRAP CHECKER
（with calibration certificate）
* Because the certificate will bear the purchaser's name (company name, etc.) , your name is required when ordering.
