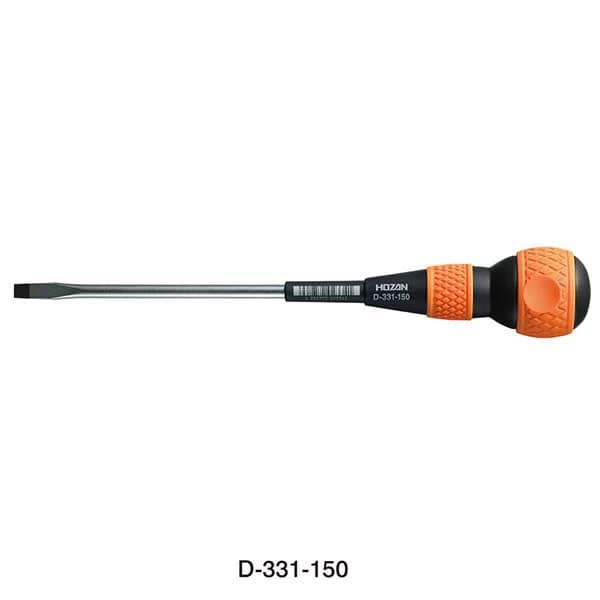

D-331
ELECTRICIAN'S SLOTTED SCREWDRIVER minus

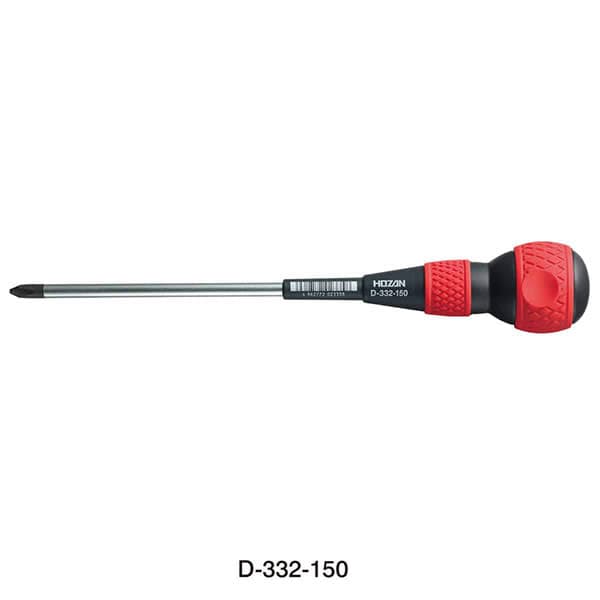

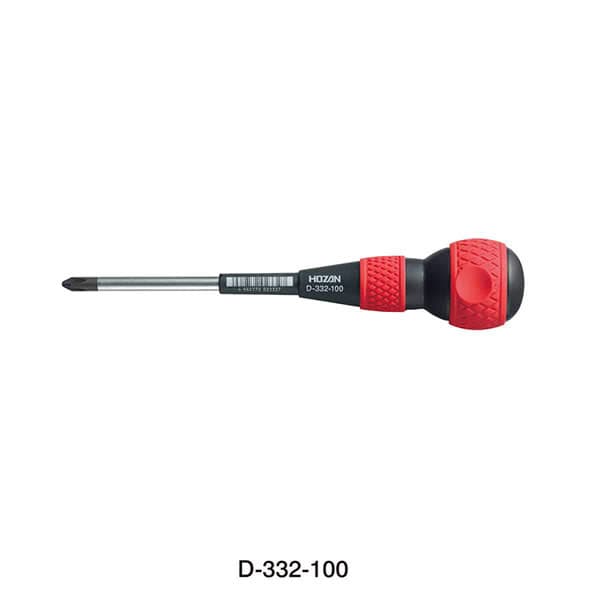

D-332
ELECTRICIAN'S PHILLIPS SCREWDRIVER minus

  • RoHS
  • MAGNETIZED
    MAGNETIZED
Part no. Tip size OAL
mm		 Blade
length
mm		 Blade
diameter
mmφ		 Handle
diameter
mmφ		 Weight
g
D-331-100 minus 6.0 × 1.0 200 100 6.4 40 120
D-331-150 250 150 130
D-332-100 plus No.2 200 100 120
D-332-150 250 150 130
warningWarning
●A screwdriver is designed to turn screws, and should not be used for any other purpose.
●Do not use where electrical currents exist.

■Related products

HC-31 / HC-33
DEMAGNETIZERS

HC-31 100V

HC-31-110 110_120V

HC-31-220 220_240V

HC-33 100V

Simply press the switch to demagnetize.
(equipped with output damping mechanism) *HC-33

Max. flux density 68 mT（50Hz） / 56 mT（60Hz）
Rated voltage / frequency AC 100 V 50 / 60 Hz
Rated current 1.0 A（50 / 60 Hz）
Power consumption 12 W
External dimensions 34（W）× 59（H）× 216（D）mm
Weight 930 g
Power cord 1.9 m

*The HC-31 specs are identical to the HC-33, except that it does not have the output damping mechanism.
Therefore, while demagnetizing, the unit must be moved away from the target object.
