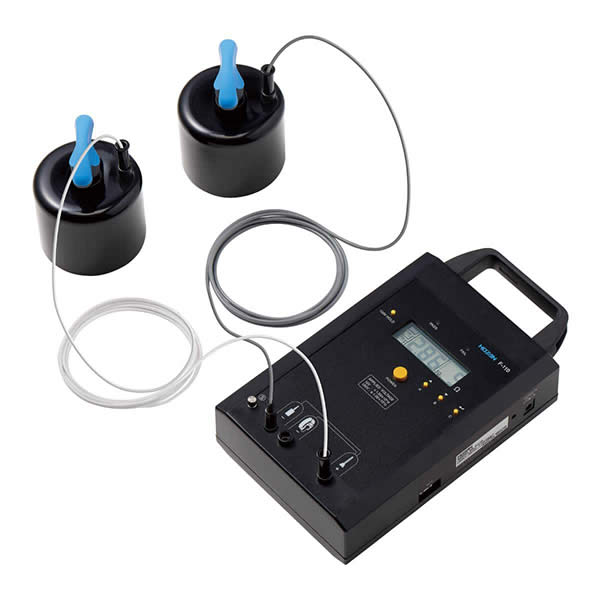

F-110 Surface Resistance Checker [HOZAN] HOZAN CO., LTD.

F-110
SURFACE RESISTANCE CHECKER

Measurement range	9.00×10²Ω or more,　2.00×10¹²Ω or less
Power supply	DC 12V (With AC adapter)
Outer dia.	Main unit：135（W） × 68（H） × 236（D） mm Electrodes：79 mmφ × 110 mm Carrying Case：400（W） × 200（H） × 200（D） mm
Weight	6.4 kg Main unit:715 g, Electrodes:2.3 kg

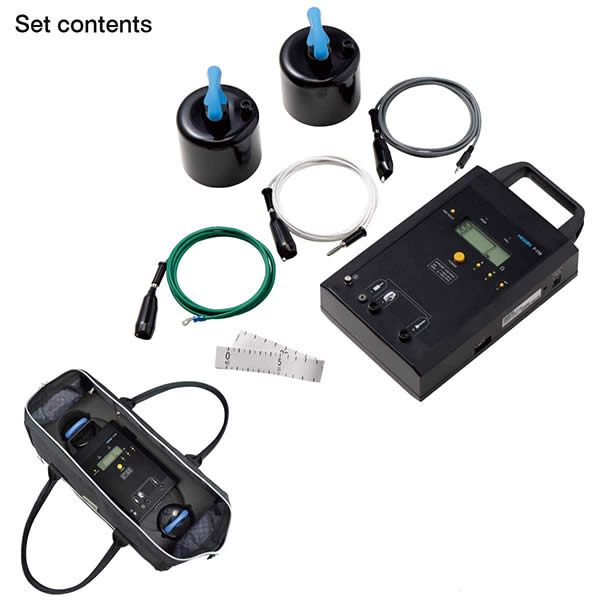

■Set contents：Electrodes × 2, Connection Cords（2m）× 3, Alligator clips × 3, Measure(40cm), SD card, AC adapter, Carrying Case

F-110-TA
SURFACE RESISTANCE CHECKER
（with Calibration Chart）

* Because the certificate will bear the purchaser's name (company name, etc.) , your name is required when ordering.

■Replacement part

F-101
ELECTRODES（2.3 kg）

■Quantity：2

■Outer dia.：79 mmφ × 110 mm

■Weight：2.3 kg

F-101-TA
ELECTRODES（2.3 kg）
（with Calibration Chart）

* Because the certificate will bear the purchaser's name (company name, etc.) , your name is required when ordering.

F-110-2
CONNECTION CORDS

F-110-3
CARRYING CASE

■Optional items

F-110-4
ELECTRODES
（for static electricity free shoes）

■Outer dia.：450（W） × 37（H） × 350（D） mm

■Weight：2.1 kg

■With Connection Cords (2m)

F-110-5
ELECTRODES

■Outer dia.：φ25 mm × 150 mm

■Weight：110 g

■Cord length：500 mm

F-110-6 / F-110-7
ESD TAPE

Part. No	Width mm	Length m	Thickness mm	Weight g	ESD standard Ω	Material	Color
F-110-6	15	50	0.07	80	Rp≦1×10⁸	PET	Gray
F-110-7	50	50	0.07	270	Rp≦1×10⁸	PET	Gray

F-110-8
CONNECTION CORD

■Cord length：15 m

■Set contents：Alligator clip, Insulation cover

F-110-9
ELECTRODES

■Outer dia.：600(W) × 170(H) × 50(D) mm

■Material：Stainless

■Weight：275 g

■Compatible models：F-109/F-110

F-104
INSULATION SHEET

■Outer dia.：1000（W) × 800（H) mm

■Weight：400 g

F-106
COUNTER ELECTRODE

F-108
TWO POINT ELECTRODES

■External dimensions：20mmφ×60mm

■Weight：50 g

■Cord length：900mm

F-109-5
PROBE

Main unit size	115 mm × 19 mmφ
Weight	22 g (one of a pair)
banana plugs diameter	4 mmφ
Compatible models	F-109/F-109-1 F-110/F-110-1

■Related products

F-110-1
SURFACE RESISTANCE CHECKER

F-110-10
INSULATING PLATE

■Outer dia.：183(W) × 75(D) mm

■Thickness：0.8 mm

■Weight：17 g (1 sheet)

■Material：Fluorine resin impregnated glass cloth
